The motor commissioning wizard guides you through the process with information or instructions displayed at the top of the app screen.

Step 1: You must be connected to a motor controller with the motor home screen visible

1. Tap Settings, then Advanced Settings, and the Commissioning Wizard.

2. The One-Time Setup instruction appears. Tap Begin Setup.

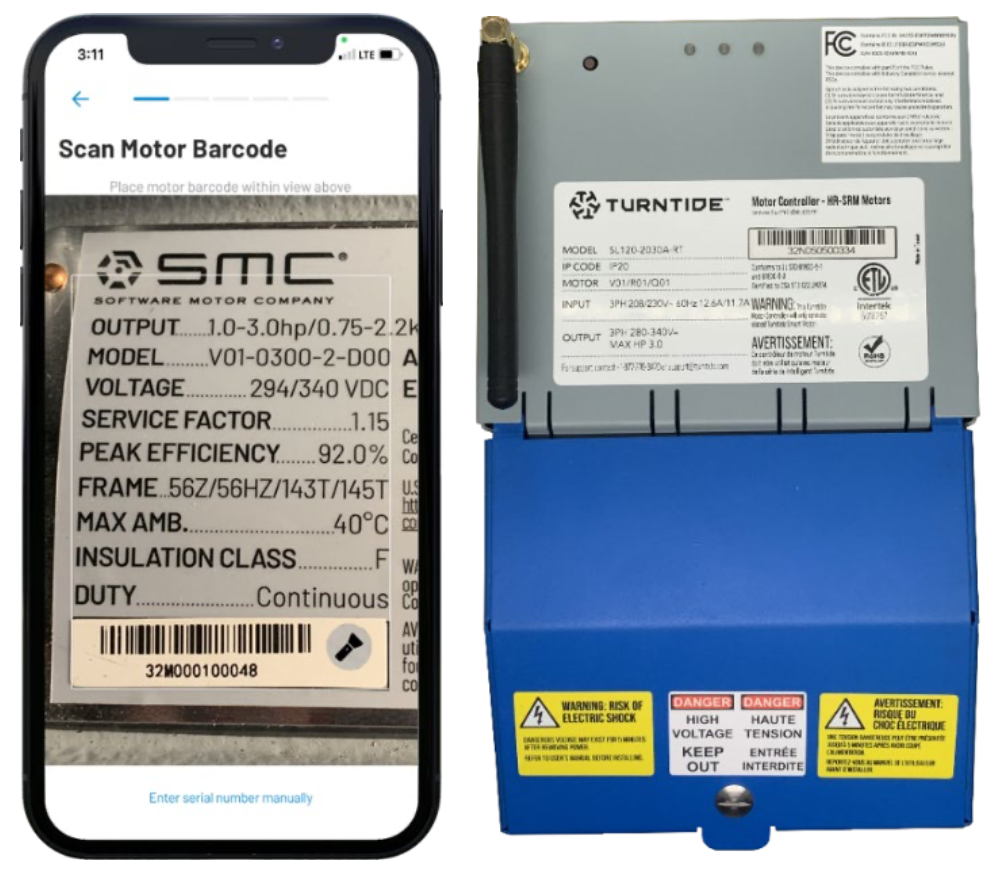

3. The Scan Motor Barcode instruction appears. Scan the bar code on the Turntide motor nameplate. (Optionally, you can tap Enter serial number manually to enter the barcode number.) Scan the Turntide motor controller barcode.
   If necessary, tap the light icon to turn on your phone’s light. Use two fingers to pinch-n-zoom the screen for an optimal view.

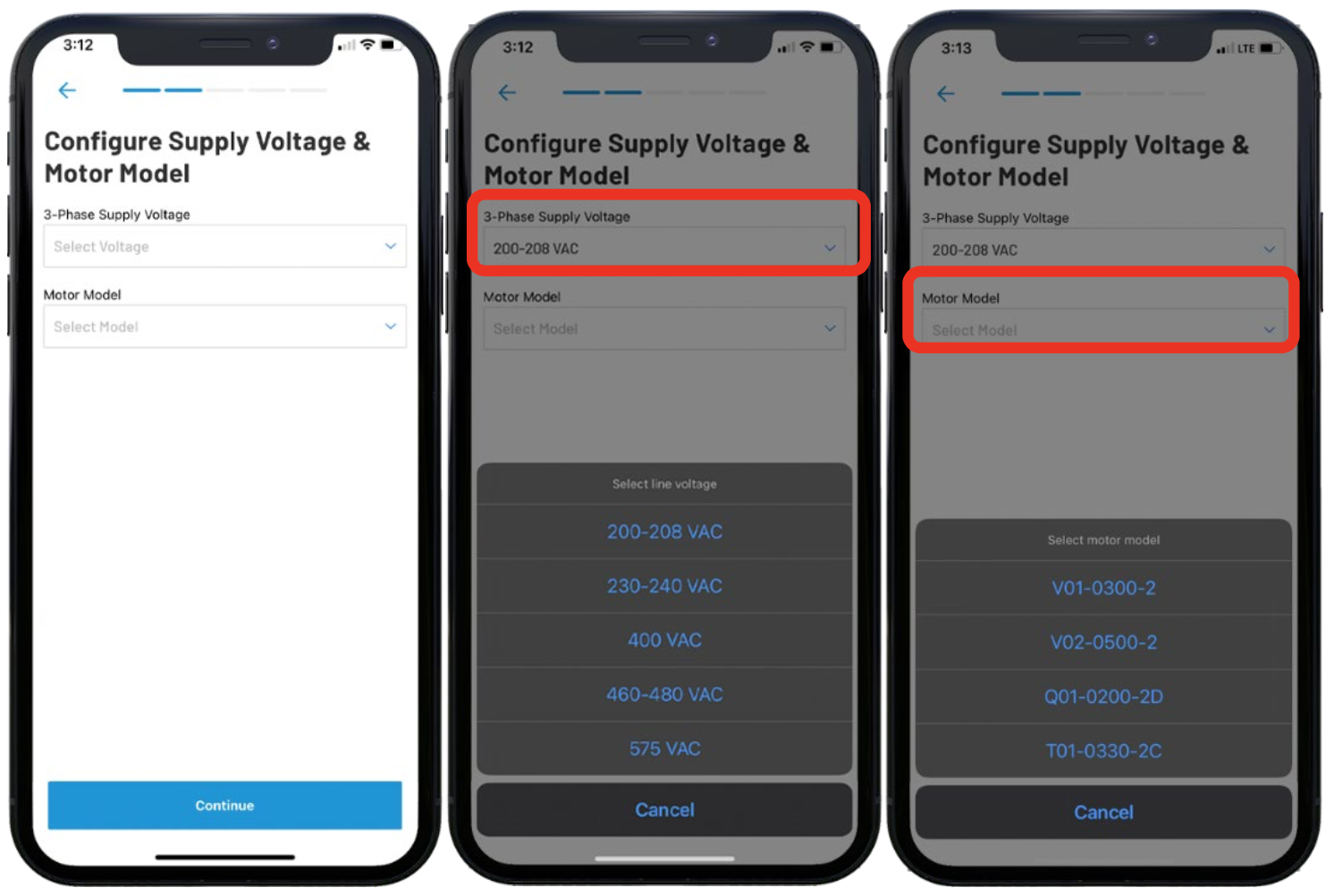

4. The Configure Supply Voltage & Motor Model message appears. From the drop downs:

   1. Select the correct voltage. Selecting the incorrect voltage may result in over/under voltage errors.

   2. Select the correct Turntide Motor Model. Only models with compatible voltage are displayed. The model number is found on the motor nameplate.

   3. Tap Continue

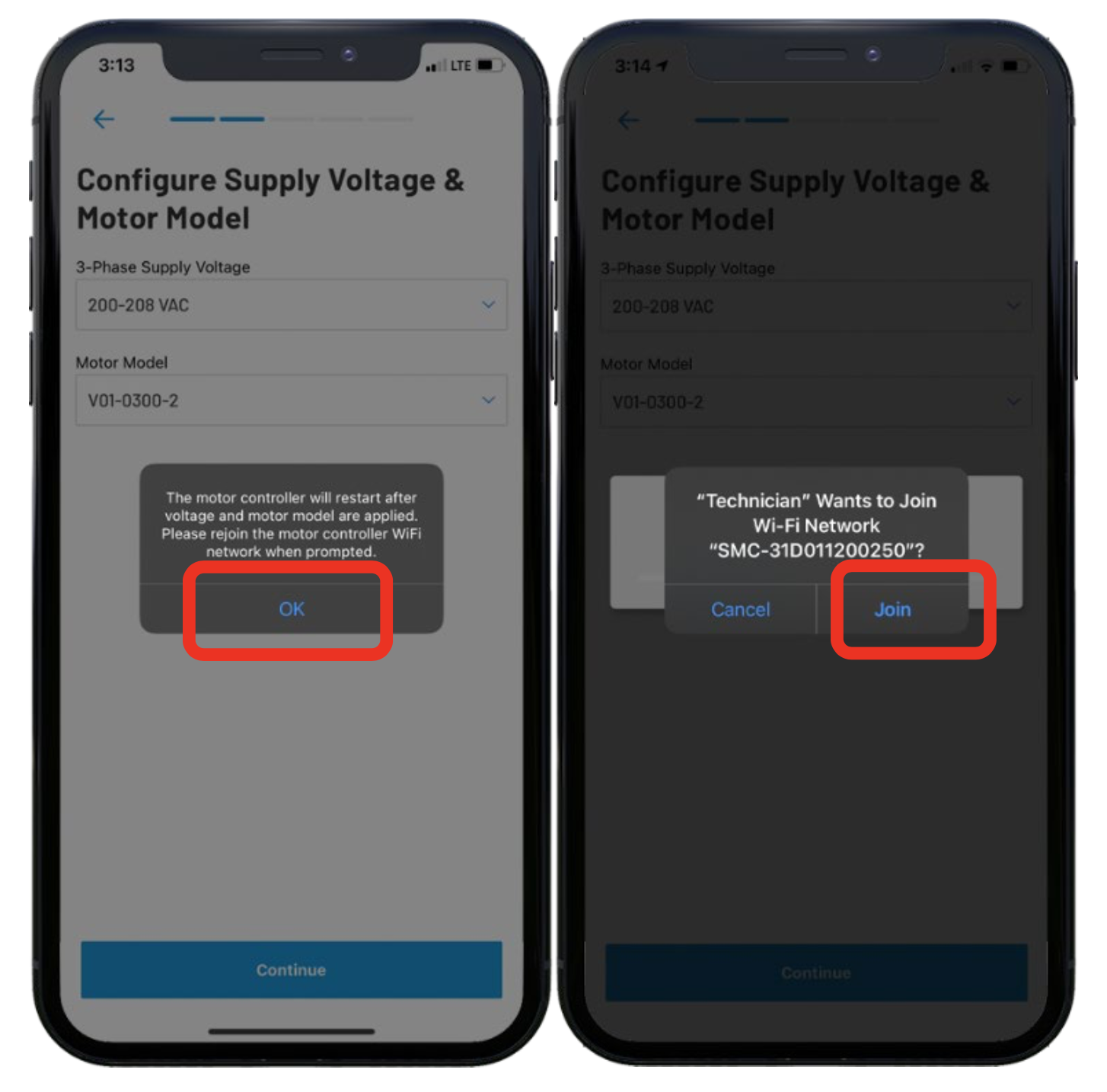

5.  A restart message appears. Tap OK to acknowledge that the motor controller will restart. This may take several seconds.
6. After the motor controller restarts, tap Join to rejoin the motor controller WI-FI network.


Step 2: Configure motor parameters

After you rejoin the motor controller WI-FI network, the Configure Speed Range instruction appears.

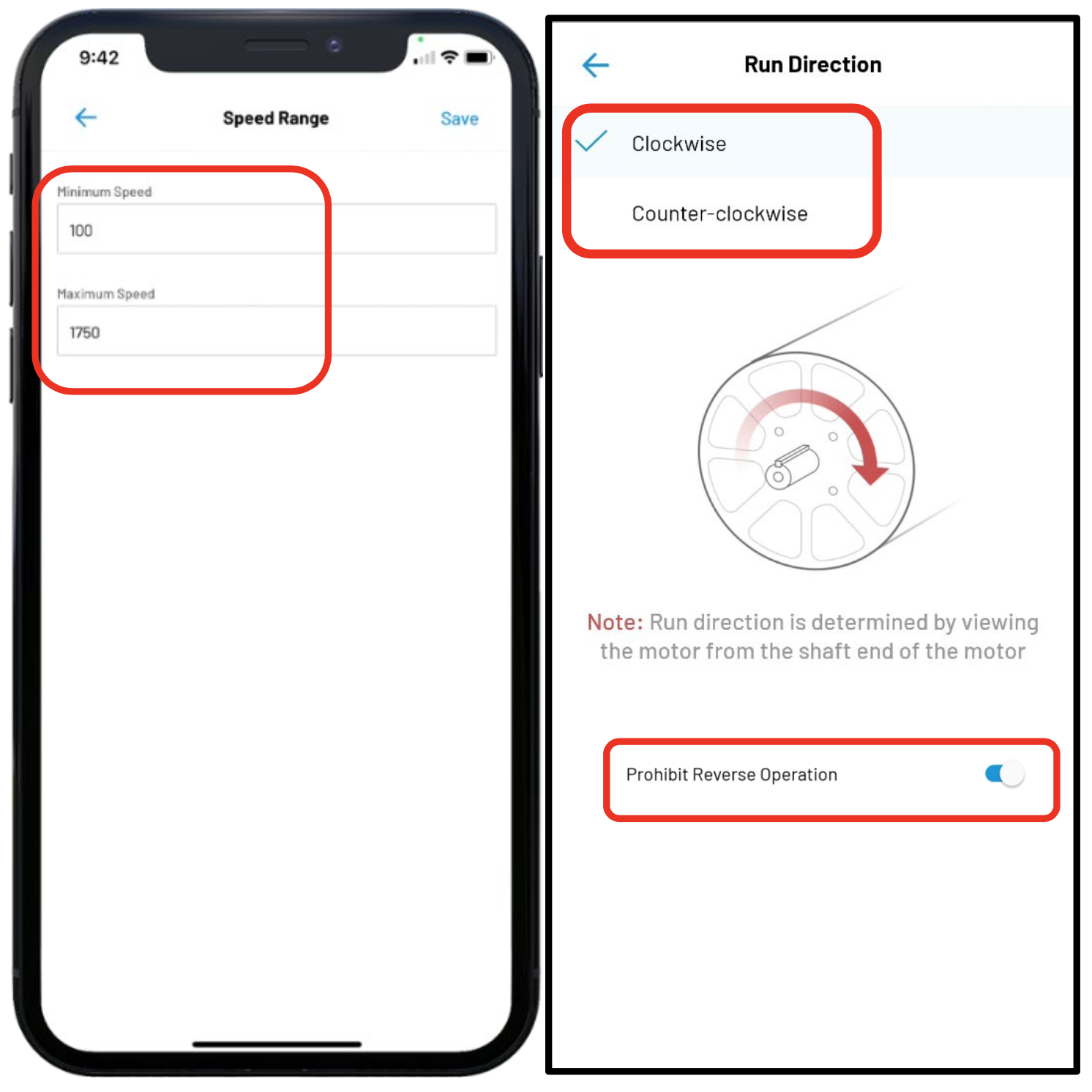

1. Leave the default Minimum Speed of 100 and enter a Maximum Speed as listed on the original induction motor nameplate.

2. Click Continue. The Configure Direction instruction appears in the Run Direction screen.
3. By default, the direction is Clockwise and Prohibit Reverse Operation is set to ON.
4. Click Continue.


Step 3: Configure the control mode

1. After you have finished configuring direction, the Configure Control Mode instruction appears.
2. Tap Logic Flow. (Logic Flow is the most common controller mode for RTU and AHU applications.)
3. Tap Load Logic Flow to confirm that you want to load a logic flow to run on the motor controller.
4. The Select Logic Flow screen appears. Use one of the following logic flows:
   1. For an RTU, select RTU: 24V Thermostat Control
   2. If your Turntide representative has informed you to use a Special Projects logic flow, use Special Projects
   3. For an Air Handling Unit (AHU), select AHU: BMS control.



Special Projects Logic flows for large rollouts with pre- specified unit operation parameters. A Turntide representative advises technicians if they are working on special project and which logic flow is necessary. In the Select Logic Flowscreen, tap Special Projects. The Special Projects screen appears with specific logic flows listed. Select (tap) the flow name given to you by your Turntide representative. A screen with the logic flow name at the top appears. Tap the Load Flow button. The Setup Complete! message appears. Tap Yes to save the applied settings. If your project does NOT include an RMK, tap the blue Done button to complete the setup. If your project does include an RMK, proceed to Step 4: RMK Connection.



Step 4: RMK Connection

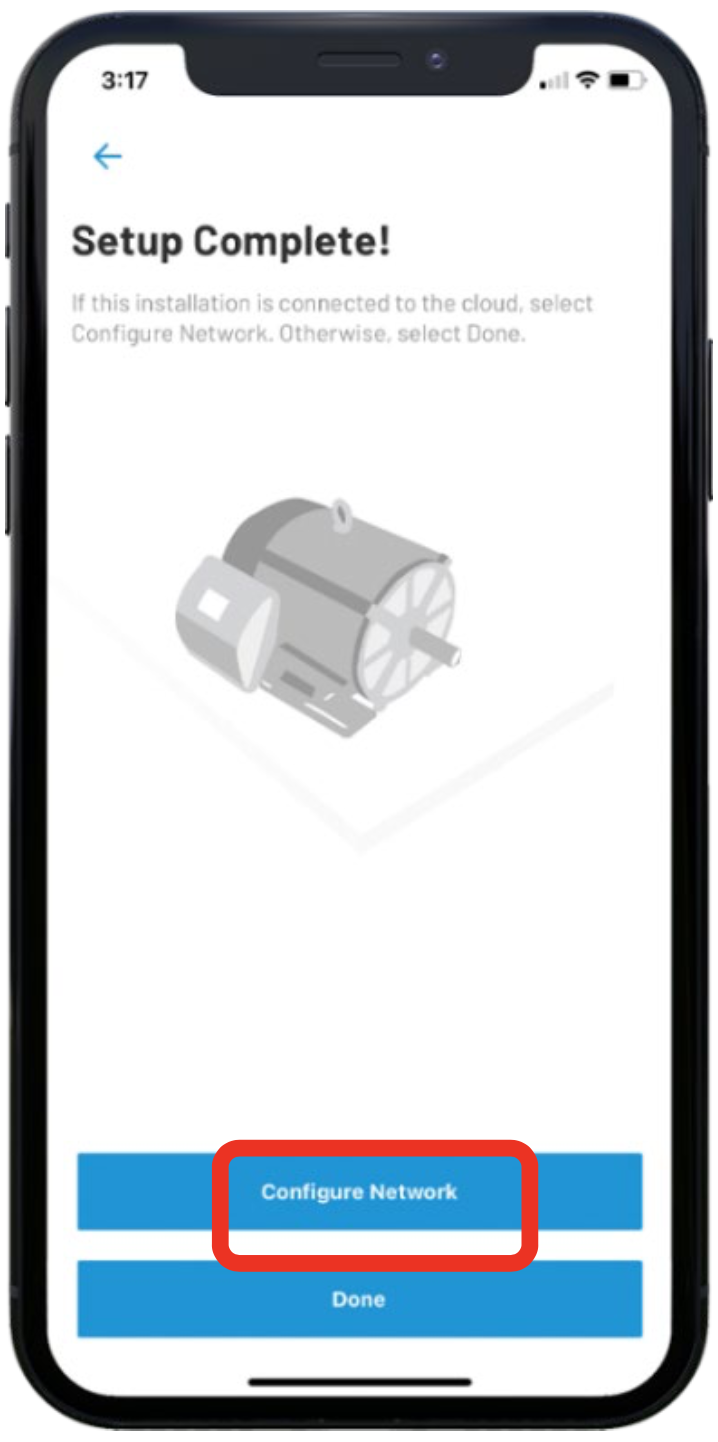

1. After the logic flow is loaded, the Setup Complete! message appears. If the project includes an RMK, tap Configure Network.


2. Ensure the RMK unit is powered on. Tap Join Wireless Network.

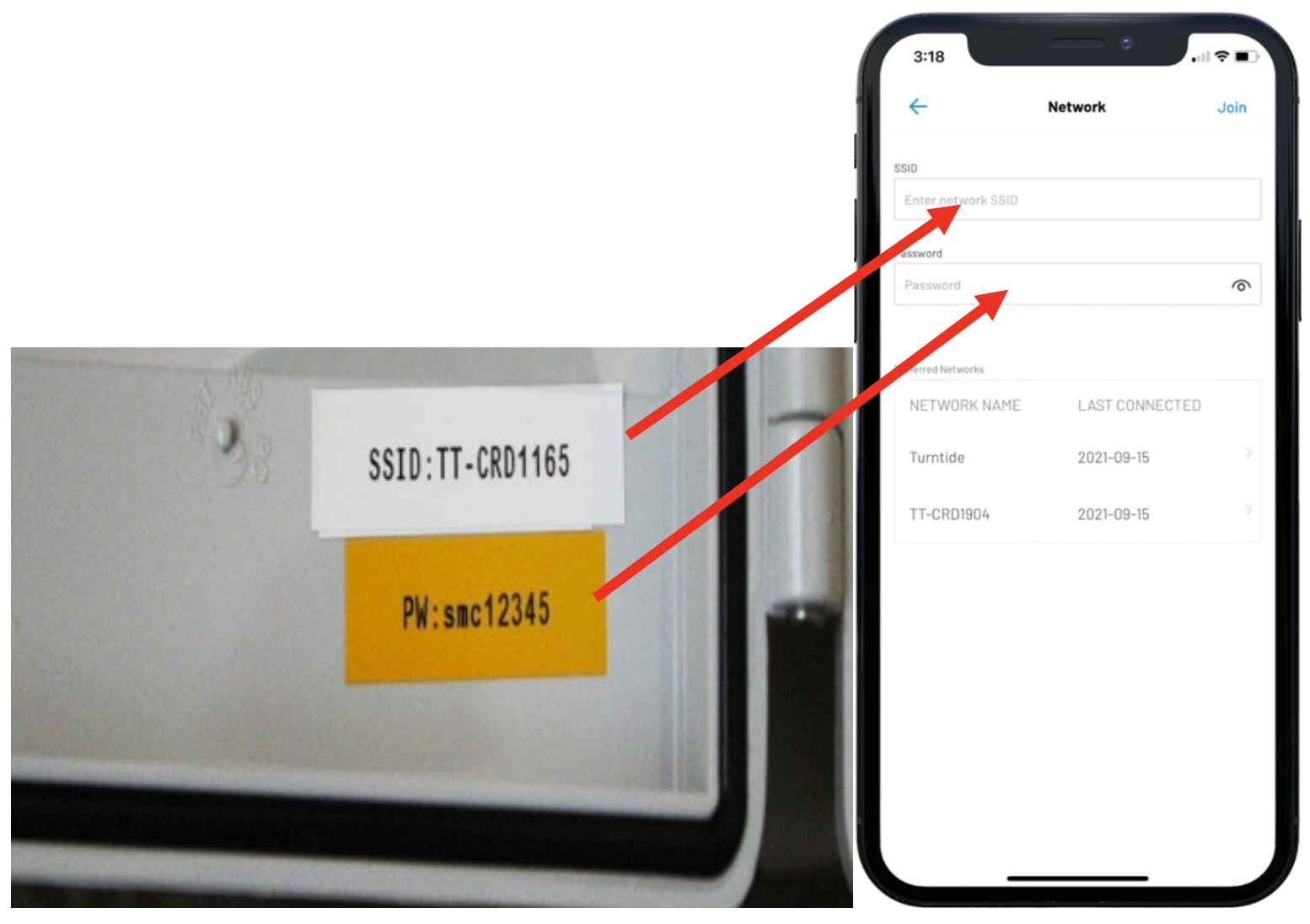

3. Enter the SSID number and the Password exactly as they appear on the label (mix of uppercase and lowercase letters). Both are found inside the RMK enclosure cover.


4. The screen now displays a check mark confirming that the motor controller is now connected to the RMK.

5. Tap Home in the upper right of the screen to return to the motor home screen.

6. Tap Done to return to the motor controller home screen.

7. Try to run the motor again:

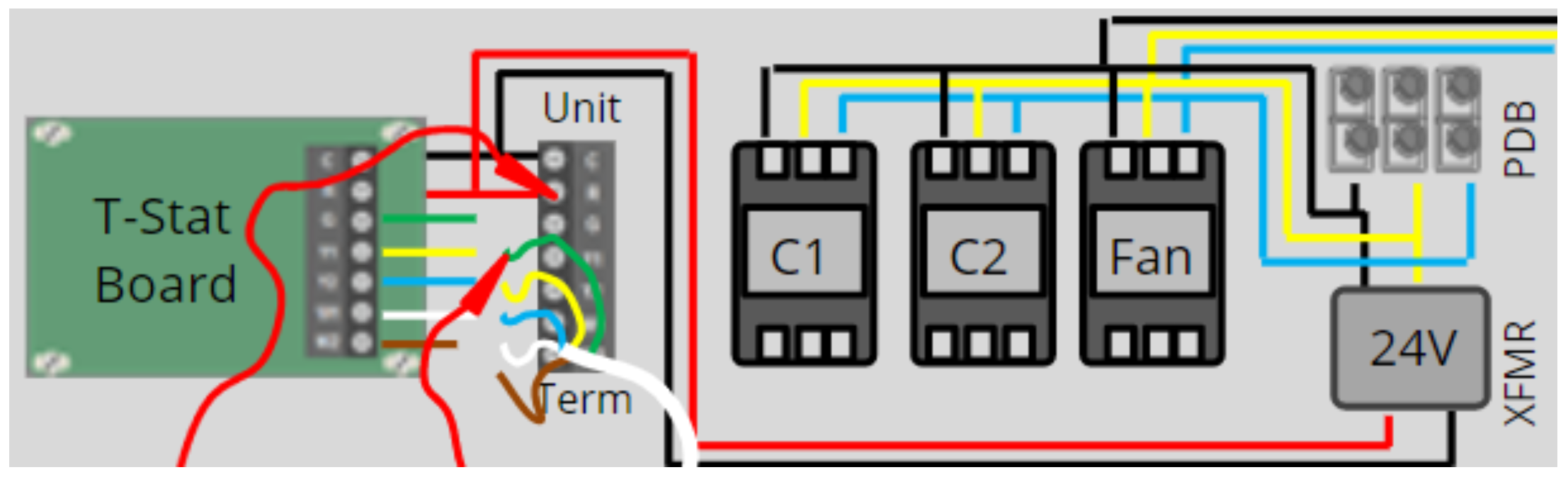

   1. Use a jumper to apply 24V to any of the white cable in put wires at the thermostat end of the cable. This should cause the motor to run.
